Features
The 180° tip angle design allows you to drill holes in a variety of applications that would be difficult with regular drills.
Features a 30° twisting angle for excellent cutting discharge and stable hole processing with high efficiency.
Thinning shape for improved shavings and sharpness.
The double margins guide the inner wall to create stable holes on non-flat surfaces.

Application
Compatible With: General construction rolled steel, carbon steel, alloy steel, cast iron, aluminum alloy, preharden steel.

Specifications
Blade Diameter: 0.2 inches (5.1 mm)
Groove length: 0.8 inches (20.4 mm)
Total Length: 2.4 inches (60 mm)
Shank diameter: 0.2 inches (6 mm)
Twisting angle: 30°
Outer Diameter: 0.2 inches (5.1 mm)
Surface treatment: UT COAT

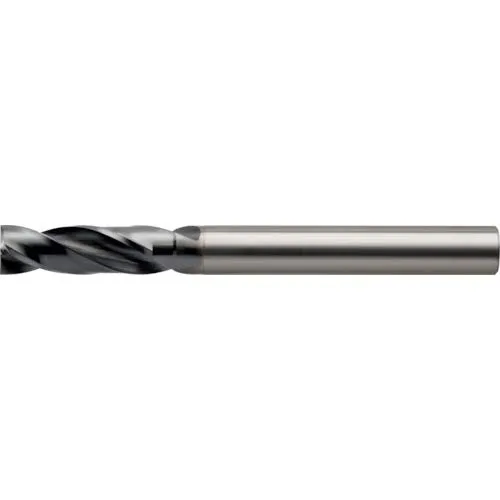

Uni-Max Drill UTDF
2 blades.
UT coating
30° twist.

Note
Shank taper angle is estimate.
Please be sure to measure and check if interfere with work is required.
Please be careful of contact between the shank and work.

• Product Dimensions ‏ : ‎ 2.69 x 0.53 x 0.42 inches; 0.85 ounces
• Date First Available ‏ : ‎ December 18, 2024
• Manufacturer ‏ : ‎ ユニオンツール(Union Tool)
